Find My Filter

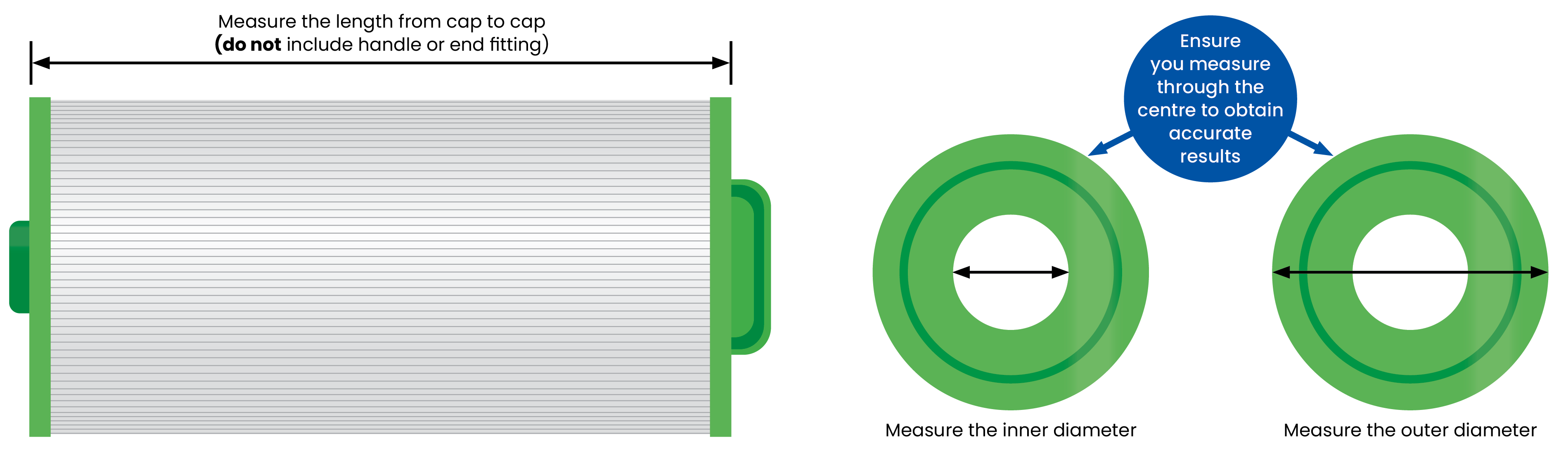

Please refer to the images below on how to accurately measure your filter.
Please use the table below to look for the compatible filter. If you need further help in finding the filter you need, don't hesitate to contact us.
| |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cartridge Model | Surface Area | Length | Outer Diameter | Inner Diameter | End Cap Fitting | Darlly | Filbur | Pleatco | Unicel |
| SFLMS-4-3BE | 10ft² | 73mm - 2 5/8" | 111mm - 4 3/8" | 51mm - 2" | Bayonet | 40104 | N/A | N/A | N/A |
| SFLIN1-4-3BE | 4ft² | 76mm - 3" | 108mm - 4 1/4" | 45mm - 1 3/4" | OBE (Open Both Ends) | 40064 | N/A | PIN4PAIR | N/A |
| SFL10-4-4OBE | 10ft² | 102mm - 4" | 108mm - 4 1/4" | 51mm - 2" | OBE (Open Both Ends) | 40101 | FC-3077 | PWW-10 | C-4310 |
| SFLBWII-4-5BE | 8ft² | 137mm - 5 3/8" | 105mm - 4 1/8" | 51mm - 2" | OBE (Open Both Ends) | 40057 | N/A | PBW5PAIR | N/A |
| SFL16-6-7HM | 16ft² | 181mm - 7 1/8" | 143mm - 5 5/8" | 51mm - 2" | MPT (Finer Threads) | 52512 | N/A | PJZ16-F2L | N/A |
| SFL20-5-7HM | 20ft² | 184mm - 7 1/4" | 117mm - 4 5/8" | 38mm - 1 1/2" | MPT (Finer Threads) | N/A | N/A | PSANT20P4 | N/A |
| SFL20-5-7HS | 20ft² | 184mm - 7 1/4" | 117mm - 4 5/8" | 38mm - 1 1/2" | SAE (Corse Threads) | 40206 | FC-0126 | PSANT20P3 | 4CH-925 |
| SFL50-6-8HS | 50ft² | 200mm - 7 7/8" | 152mm - 6" | 38mm - 1 1/2" | SAE (Corse Threads) | 60401 | FC-0359 | PWW50P3 | 6CH-940 |
| SFL07-4-8OBE | 7ft² | 203mm - 8" | 108mm - 4 1/4" | 45mm - 1 3/4" | OBE (Open Both Ends) | 40051 | FC-3710 | PC7-120 | C-4607 |
| SFL47-6-8HM | 47ft² | 229mm - 9" | 152mm - 6" | 38mm - 1 1/2" | MPT (Finer Threads) | 60471 | FC-0315 | PTL47W-P4 | 6CH-47 |
| SFL35-5-9BE | 35ft² | 241mm - 9 1/2" | 127mm - 5" | 51mm - 2" | OBE (Open Both Ends) | 40353 | FC-2385 | PRB35-IN | C-4335 |
| SFL30-5-10OBE | 30ft² | 264mrn - 10 3/8" | 149mm - 5 7/8" | 51mm - 2" | OBE (Open Both Ends) | 60301 | FC-3915 | PWK30 | C-6430 |
| SFL65-8-10OBE | 65ft² | 267mm - 10 1/2" | 213mm - 8 3/8" | 76mm - 3" | OBE (Open Both Ends) | 80651 | FC-3960 | PWK65 | C-8465 |
| SFL50-5-13OBE | 50ft² | 337mm - 13 1/4" | 127mm - 5" | 51mm - 2" | OBE (Open Both Ends) | 40506 | FC-2390 | PRB50-IN | C-4950 |
| SFL25-5-13OBE | 25ft² | 340mm - 13 3/8" | 127mm - 5" | 51mm - 2" | OBE (Open Both Ends) | 42513 | FC-2375 | PRB25-IN | C-4326 |
| SFL50-5-13HS | 50ft² | 346mm - 13 5/8" | 127mm - 5" | 51mm - 2" | SAE (Corse Threads) | 40508 | FC-0172 | PWW50L | 4CH-949 |
| SFL60-7-15HS | 60ft² | 397mm - 15 5/8" | 168mm - 6 5/8" | 51mm - 2" | SAE (Corse Threads) | 60521 | FC-2800 | PJW60TL-F2S | 6CH-960 |
| SFL75-5-20OBE | 75ft² | 527mm - 20 3/4" | 127mm - 5" | 51mm - 2" | OBE (Open Both Ends) | 40751 | FC-2395 | PRB75 | C-4975 |
